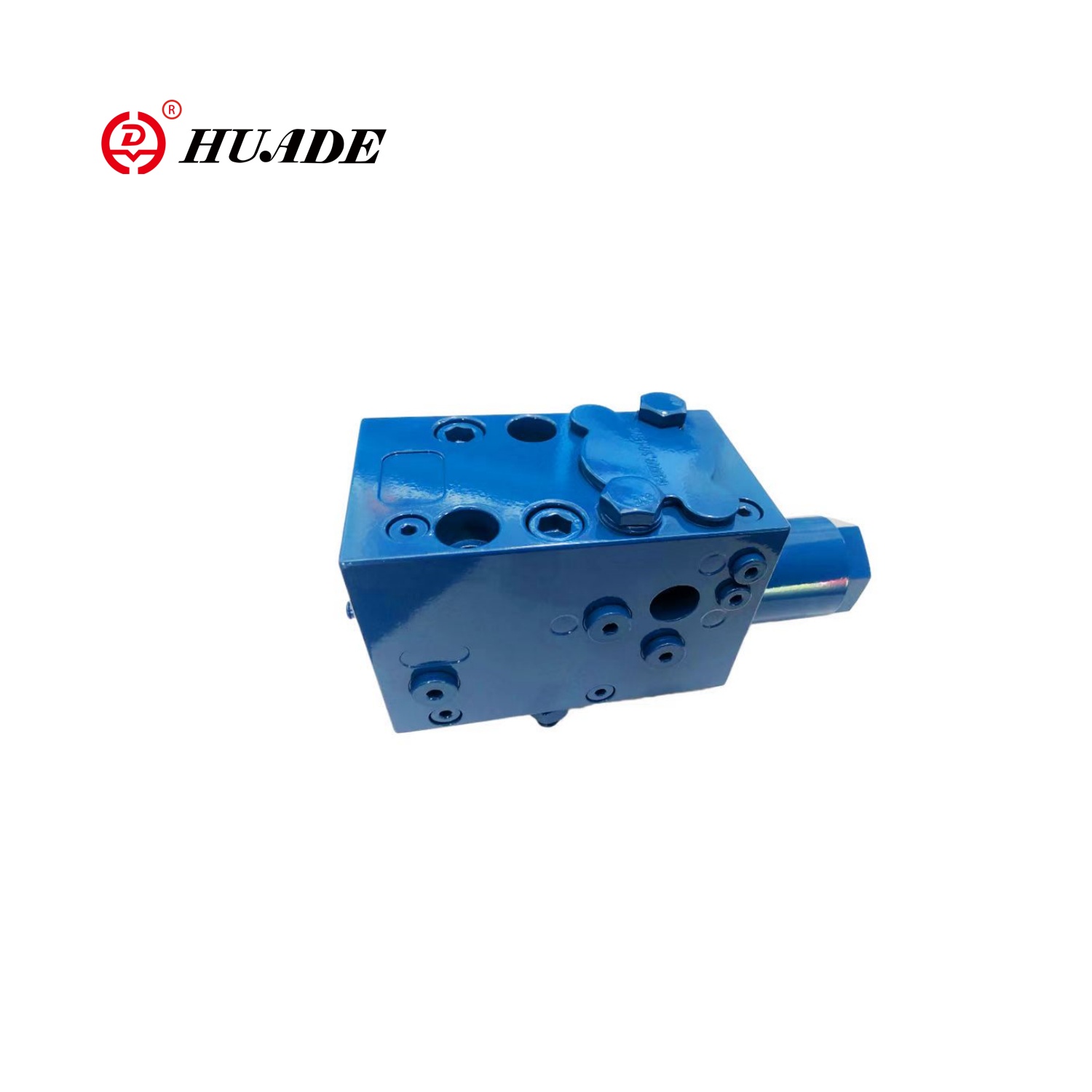

The balancing valve is widely used in the field of engineering machinery, especially in the hydraulic system of large-tonnage lifting equipment. The pilot control pressure range of this product is large, and the pilot port is equipped with a filter, so the whole valve has strong anti-pollution ability. Various damping combinations can realize a variety of pilot controls, greatly improving the stability of the system.
| Maximum working pressure | 42bar |
| Rated working pressure | 35bar |
| Forward rated flow | 600L/min |
| Reverse rated flow | 500L/min |
| Oil port size | A,B:SAE1 1/4''6000PSI |
| MA,MB,MVST,X,T:G1/4 | |
| Function Introduction | Applied to winch and luffing conditions, making the action smoother and more accurate. The pilot control pressure range is large and various damping hole combinations can achieve fine control |
| Main application areas | Winch luffing condition |
Features:
▶the electromagnet can be rotated 90°
▶the coil can be replaced without adding oil
▶you can choose to connect individually or centrally
▶optional manual emergency operation
▶threaded connection, compact structure
Application:

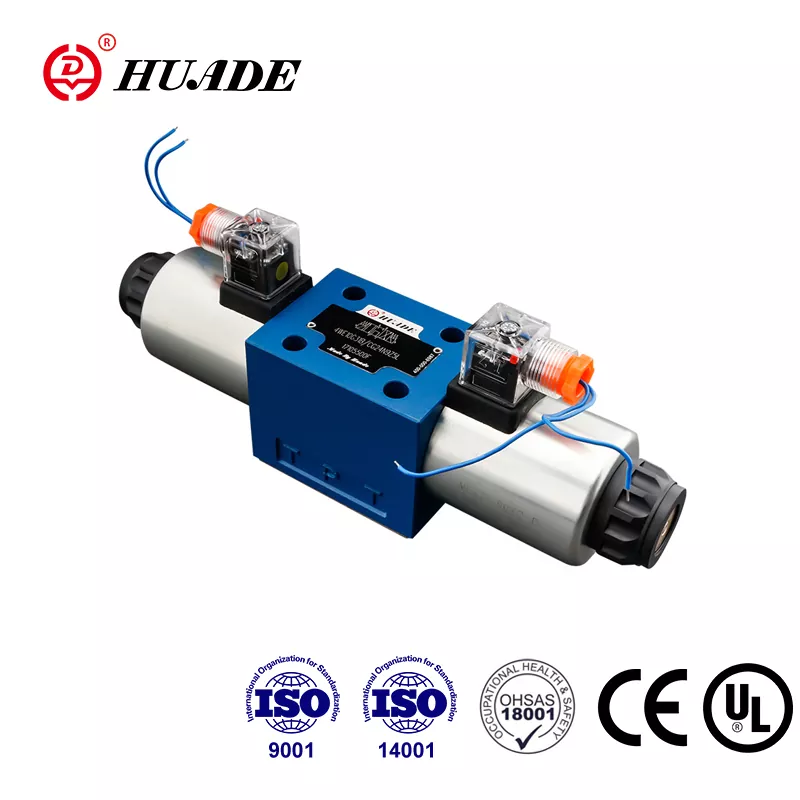

Huade’s threaded electromagnetic reversing valves are widely used in many fields, such as automated production lines, environmental protection equipment, refrigeration equipment, sewage treatment,petrochemicals.
