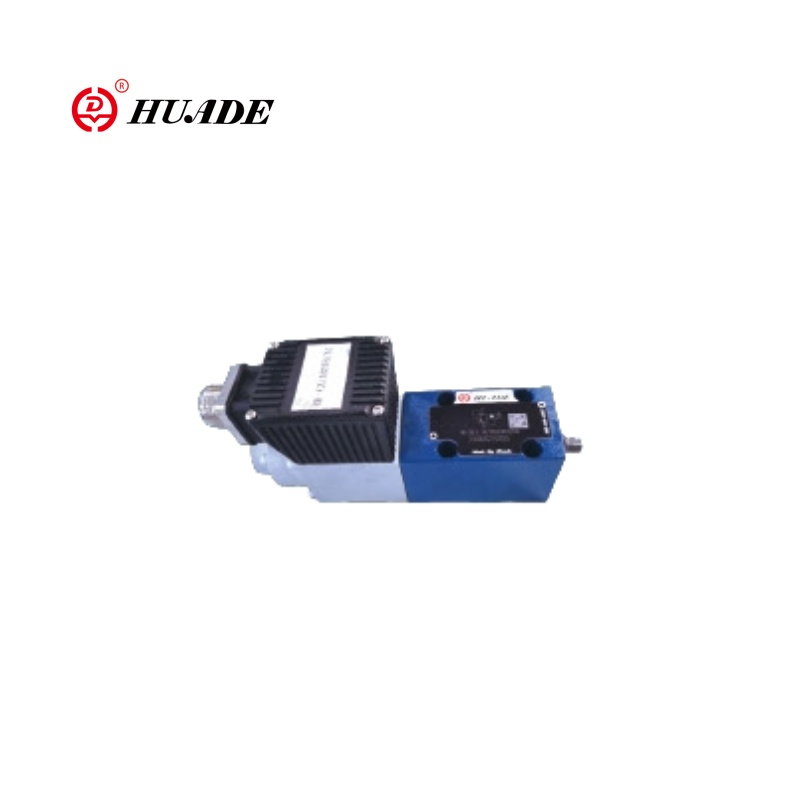

Αναλογική βαλβίδα ανακούφισης πίεσης DBEE-1X

The DBEE-1X proportional relief valve is driven by a proportional solenoid, featuring a threaded connection and a removable coil. It integrates an electronic controller (OBE), enabling more precise and convenient control. This valve is primarily used to limit system pressure and can infinitely set the desired system pressure limit based on electrical input values. Proportional valve type DBEE-1X meets CE certified requirements. Huade's DBEE-1X proportional valve can replace the same model offered by Rexroth.

Product parameter of Proportional Pressure Relief Valve DBEE-1X

Product Feature And Application of Proportional Pressure Relief Valve DBEE-1X

Features:

▶Valve for limiting a system pressure

▶Actuation via proportional solenoids

▶For subplate mounting or sandwich plate design

▶Valve and control electronics from a single source

▶Types HD-DBEE with integrated control electronics

①Low example spread of the command value pressure characteristic curve

②Independently adjustable up and down ramps

Application:

Proportional relief valve DBEE-1X has broad application prospects in various fields such as engineering machinery, metallurgical equipment, shipbuilding, and so on.

Function and section of Proportional Pressure Relief Valve DBEE-1X

Proportional pressure relief valves, types HD-DBE are actuated by means of a proportional solenoid. These valves are used to limit a system pressure. With these valves it is possible to steplessly adjust the system pressure, which is to be limited, in relation to the electrical command value.

These valves basically consist of a proportional solenoid (1), the housing (2), the valve cartridge (3), the spool (4) and the pilot poppet (8). The proportional solenoid converts the electrical current proportionally into a mechanical force. An increase in current causes a corresponding rise in the solenoid force. The solenoid armature chamber is filled with hydraulic fluid and is pressure-balanced. The setting of the system pressure is carried out via the proportional solenoids(1) in relation to the command value. Pressure arising from the system in port P acts on the right hand side of the spool(4). At the same time the system pressure acts via the control line (6) which is fitted with an orifice (5) on the spring loaded side of the spool (4). Via a further rifice (7) the system pressure acts on the pilot poppet (8) against the force of the proportional solenoid (1). Once the system pressure has reached the pre-set value the pilot poppet (8) lifts from its seat. Depending on the model, pilot oil can now flow away externally via port A (Y) or internally into the tank, this has the effect of limiting the pressure on the spring loaded side of the spool (4). If the system pressure continues to rise slightly then the higher pressure on the right hand side of the spool pushes the spool to the left into control position P to T. At a minimum control current -corresponding to a command value of zero -the minimum settable pressure will be set.

Structure of Proportional Pressure Relief Valve DBE-1X

Structure of  Proportional Pressure Relief Valve DBEE-1X

In terms of functional design, it basically corresponds to the DBE proportional relief valves. The only difference is that the proportional solenoid is equipped with a housing ⑩, within which the electronic controller is built. Power supply and set point voltage are received via a plug-in connector (11).

The set point-pressure characteristic curve is preset by the manufacturer based on the principle of minimum manufacturing tolerances. The ramp times for pressure increase and decrease can be independently adjusted using respective potentiometers.

Symbol of Proportional Pressure Relief Valve DBEE-1X
